เครื่องสแกนโค้ด เครื่องสแกนรถยนต์ เครื่องวิเคราะห์เครื่องยนต์ วิเคราะห์อาการรถยนต์ วินิจฉัยรถยนต์ อ่านโค้ดต่างๆ Autel MS509 OBDII OBD2

เครื่องสแกนโค้ด วิเคราะห์อาการรถยนต์ อ่านโค้ดต่างๆ Autel MS509 OBDII

·       อ่านโค้ดและลบโค้ด

·       รีเซ็ทหน้าจอ

·       ใช้งานสะดวกเหมาะสำหรับอู่ทั่วไป

·       อ่านค่าได้กับรถยนต์หลายรุ่นตั้งแต่ปี 96 ถึงปัจจุบัน

AUTEL เครื่องสแกนโค้ด วิเคราะห์อาการรถยนต์ อ่านโค้ดต่างๆ OBD II

Maxiscan MS509 เป็นเครื่องมือช่วยวิเคราะห์อาการต่าง ๆ ของเครื่องยนต์ สแกนโค้ด เพื่อให้ง่ายต่อการวิเคราะห์อาการต่าง ๆ ลบโค้ด ถุงลม รีเซ็ทหน้าจอ และอื่นๆ  ใช้ได้กับรถ ตั้งแต่่ปี 1996 ถึงปัจจุบัน (บางรุ่น)

·       ประเภทสินค้า : เครื่องสแกนโค้ด วิเคราะห์อาการรถยนต์ อ่านโค้ดต่างๆ

·       สำหรับรถยี่ห้อ : Audi, Benz, BMW, Chevrolet, Citroen, Ford, GM, Honda, Hyundai, Kia, Mazda, Nissan, Renault, Skoda, Toyota, Volvo, VW

·       Hardware Version: ELM327

·       Software Version: OBD2

·       Language:  English

MaxiScan MS509
The MS509 OBDII/EOBD Code Reader supports all nine OBDII test modes on all OBDII EOBD compliant vehicles to enable technicians and home users to accurately diagnose even the toughest problems. Sophisticated yet easy-to-use, this hand-held scanning tool enables fast and easy access to engine based EOBD Fault codes, The CAN enabled tool gives clear, concise DTC definitions on its large back-lit LCD screen retrieves generic P0, P2 and P3 and U0 codes for engine emissions and also picks up manufacturer specific P1, P3 and U1 codes, Turns off MIL light, Stores freeze frame data for later evaluation and will also display monitor and I/M readiness status.

Product Features & Functions:
Works on all 1996 and later OBDII compliant US, European and Asian vehicles
Easily determines the cause of the Check Engine Light (MIL)
Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3, and U1) codes
Turns off Check Engine Light (MIL), clears codes and resets monitors
Displays DTC definitions on unit screen
Views freeze frame data
Displays monitor and I/M readiness status (emissions)
Identifies pending codes
Reads live PCM datastream
Displays live O2 sensor test data
Graphs data C (1996 and newer)
Reads, stores & playbacks live sensor data
Memory/battery backup for off-vehicle data review and analysis
Multilingual menu:--- English, Spanish, French,German

Performs modules present test
Retrieves vehicle information (VIN, CIN and CVN)
Supports CAN (Controller Area Network) and all other current
OBD-II protocols
Built-in OBD-II DTC lookup library
Large easy-to-read backlit LCD screen
Software upgradeable via internet
Prints data via PC

Works with the following:
OBDII/EOBD coverage(US, Asian & European) Reads & clears generic and some maunfactures trouble codes.

ปุ่มต่างๆบนหน้จอ

1. LCD DISPLAY -- Indicates test results. Backlit, 128 x 64 pixel display with contrast adjustment.

2.ENTER BUTTON -- Confirms a selection (or action) from a menu. Starts recording live data under manual trigger mode.

3.ESC BUTTON -- Cancels a selection (or action) from a menu or returns to the menu. It is also used to setup system, exit DTC Lookup screen, or stop data recording when pressed.

4.  LEFT SCROLL BUTTON -- When look up DTC definitions, moves to previous character and views additional information on previous screens if DTC definition covers more than one screen; deselect all marked PID data when viewing or recording customized live data list; views previous frames of recorded data when playing back live data.

5.  RIGHT SCROLL BUTTON -- When look up DTC definitions, moves to next character and view additional information on next screens if DTC definition covers more than one screen; selects/deselects PID data when viewing or recording customized live data list, and views next frames of data when playing back live data.

6.  UP SCROLL BUTTON -- Moves up through menu and submenu items in menu mode. When more than one screen of data is retrieved, moves up through the current screen to the previous screens for additional data.

7.  DOWN SCROLL BUTTON -- Moves down through menu and submenu items in menu mode. When more than one screen of data is retrieved, moves down through the current screen to next screens for additional data. It is also used as the language setup hotkey when pressed.

8.  HELP BUTTON -- Provides help information when pressed.

9.No function.

10. RUBBER BOOT -- Protects the scan tool from drop, abrasion and etc.

The m OBDII/EOBD Code Reader supports all nine OBDII test modes on all OBDII EOBD compliant vehicles to enable technicians and home users to accurately diagnose even the toughest problems. Sophisticated yet easy-to-use, this hand-held scanning tool enables fast and easy access to engine based EOBD Fault codes, The CAN enabled tool gives clear, concise DTC definitions on its large back-lit LCD screen retrieves generic P0, P2 and P3 and U0 codes for engine emissions and also picks up manufacturer specific P1, P3 and U1 codes, Turns off MIL light, Stores freeze frame data for later evaluation and will also display monitor and I/M readiness status.

MS509 Supported Protocols and Vehicles:

ISO 15765-4 CAN (29 bit ID, 250 kbaud)

ISO 15765-4 CAN (11 bit ID, 250 kbaud)

ISO 15765-4 CAN (29 bit ID, 500 kbaud)

ISO 15765-4 CAN (11 bit ID, 500 kbaud)

ISO 14230-4 KWP 2000 (fast init, 10.4 kbaud)

ISO 14230-4 KWP 2000 (5 baud init, 10.4 kbaud)

ISO 9141-2 (5 baud init, 10.4 kbaud)

SAE J1850 VPW (10.4 kbaud)

SAE J1850 PWM (41.6 kbaud)

Supported Car :

if your car satisfy the following two conditions , 98% no problem :

1. Your car engine work on 12V ,

2. American car : after 1996 year ,

European and Australian Car : after 2000 year ,

Asian Car : after 2005 year .

( if your car satisfy the conditions and the ecu support standard OBD2 / EOBD protocols, it will be 100% no problem )

Don't support the local brand car models.

MS509 Product Features & Functions:

Works on all 1996 and later OBDII compliant US, European and Asian vehicles
Easily determines the cause of the Check Engine Light ( MIL)
Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3, and U1) codes
Turns off Check Engine Light (MIL), clears codes and resets monitors
Displays DTC definitions on unit screen
Views freeze frame data
Displays monitor and I/M readiness status (emissions)
Identifies pending codes
Reads live PCM datastream
Displays live O2 sensor test data
Graphs data C (1996 and newer)
Reads, stores & playbacks live sensor data
Memory/battery backup for off-vehicle data review and analysis
Multilingual menu:--- English, Spanish, French

Performs modules present test
Retrieves vehicle information (VIN, CIN and CVN)
Supports CAN (Controller Area Network) and all other current
OBD-II protocols
Built-in OBD-II DTC lookup library
Large easy-to-read backlit LCD screen
Software upgradeable via interne

The Maxiscan M OBDII/EOBD Scanner is specially designed to work with all OBD II compliant vehicles, including those equipped with next-generation protocol -- Control Area Network (CAN). It is required by EPA that all 1996 and newer vehicles (cars and light trucks) sold in the United States must be OBD II compliant and this includes all Domestic, Asian and European vehicles.

A small number of 1994 and 1995 model year gasoline vehicles are OBD II compliant. To verify if a 1994 or 1995 vehicle is OBD II compliant, check the Vehicle Emissions Control Information (VECI) Label which is located under the hood or by the radiator of most vehicles. If the vehicle is OBD II compliant, the label will designate “OBD II Certified”. Additionally, Government regulations mandate that all OBD II compliant vehicles must have a “common” sixteen-pin Data Link Connector (DLC).

For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.

MS509 Specifications:

1) Display: Backlit, 128 x 64 pixel display with contrast adjustment

2) Operating Temperature: 0 to 60°C (32 to 140 F°)

3) Storage Temperature: -20 to 70°C (-4 to 158 F°)

4) External Power: 8.0 to 18.0 V power provided via vehicle

battery

5) Dimensions:

Length Width Height

178 mm (7.00”) 95 mm (3.74”) 35 mm (1.38”)

6) NW: 0.38kg (0.84lb), GW: 0.55 kg(1.21lb)

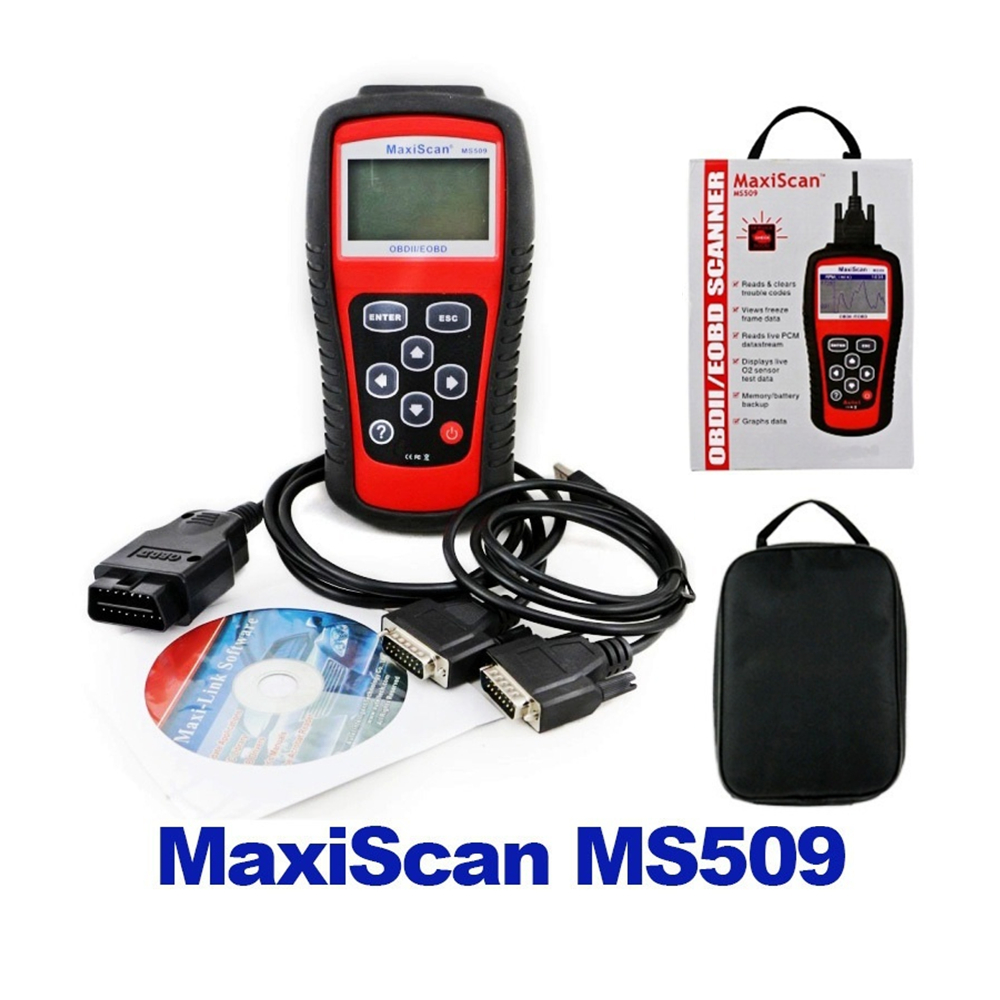

Included in this package (สิ่งที่ท่านจะได้รับ)
1* Ms509 Code Reader
1* Instruction Manual book
1* CD with DTC definitions, User's Manual
1* Computer USB connecting lead
1* OBD2 lead
1* Handy carry case
